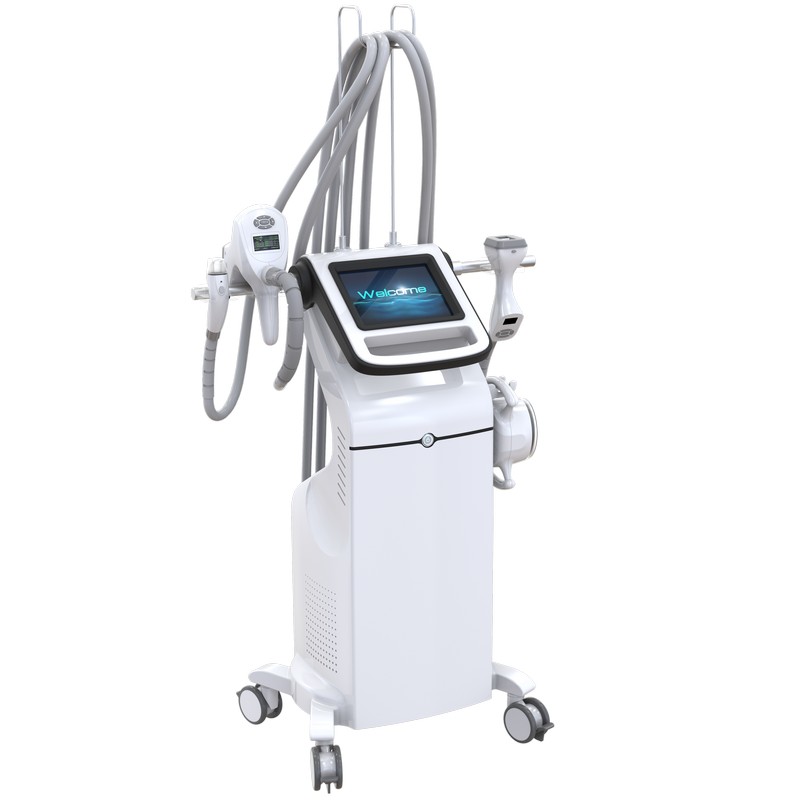

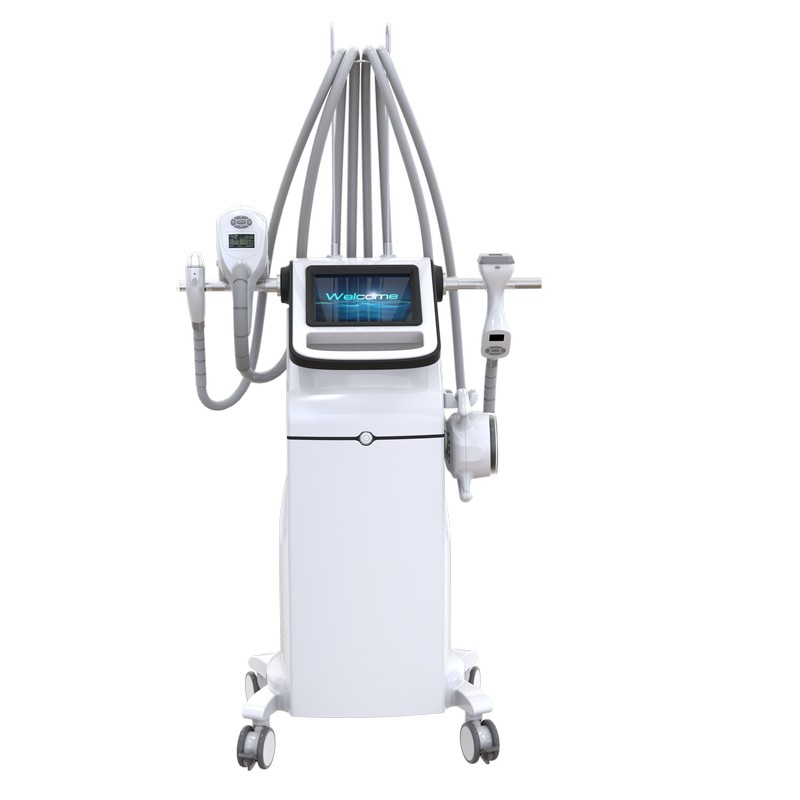

Advanced Vela Body Shape V9 V10 Non Invasive Solution for Effective Body Sculpting and Cellulite Elimination

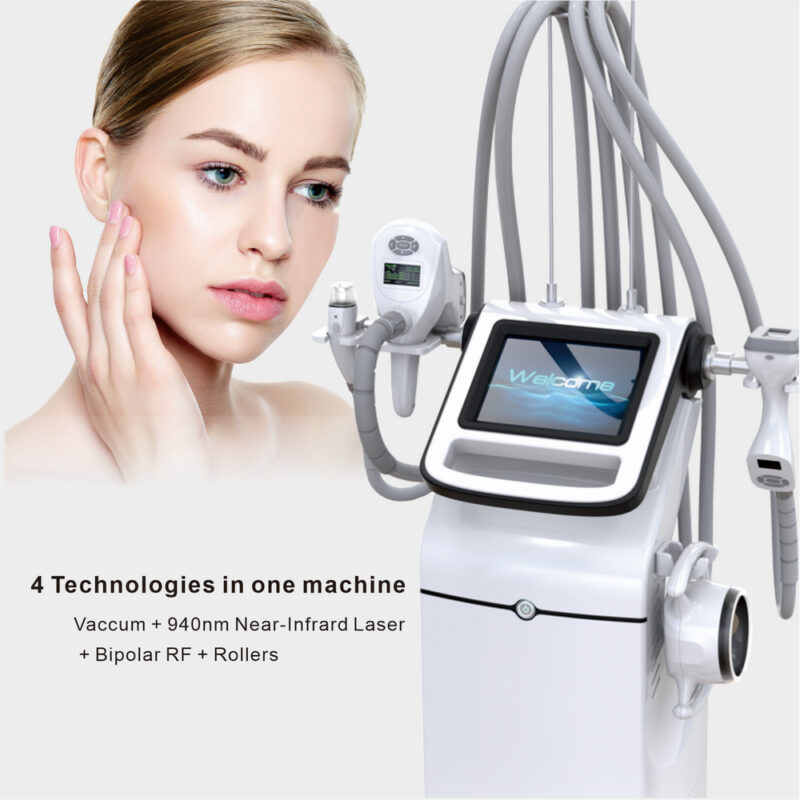

The Vacuum Slim device employs Four technologies including Infrared, Bipolar RF, Vacuum, Massage mechanism.
2. Bi-polar radio frequency (RF) heats tissue from 2 to 20mm depth.
3. Vacuum + Massage mechanism accelerate blood circulation and increase blood flow, so as to drain the excessive water and body waste.
4. Cavitation head to remove fat cells effectively

1. Black circle around eyes removal, wrinkle around eyes improvement and pouch improvement;
2.Upper eyelid lifting and wrinkle removal;
3.Postpartum recovery, body contouring after birth;
4.Generalized obesity, localized adiposity, fat dissolving, skin tightening(arms, leg, shoulders and back, mountaineering shoe,buttocks, etc.
5.Alleviate arthritis pain and whole body physical therapy;
6.Stretch mark improvement.

Vauum plus specially designed rollers manipulate leads RF penetration to be even 5-15mm. Nip and stretch fibrillar connective tissue greatly improves body contouring effec . Vacuum folds skin makes RF energy penetrate a specific folded skin , greatly improve effect and safety , even for the upper eyelid area treatment
2, Rollers system
Use rollers to massage the skin , can promote local blood circulation , accelerate fat metabolism , make cellulite more closely .Transverse heated so that the role of depth is more uniform , reliable safety , make eyes face no longer become operation area.
3, Bipolar RF System
Bipolar RF makes water molecules in the fat revolve with high speed to produce friction and shock, then triglyceride go out from fat. RF energy with 1-10M could get to 4-15mm skin depth, which makes every layer get heat evenly. The new collagen makes skin turn tighten. This Bipolar RF make the reorganizing fat cells connect more closely, stimulate the collagen re-grow, avoiding
flabby skin after slimming treatment.
4, 940nm Laser Infared Laser System
This technology is the treatment manner which surgeons like most. 940nm light is not visible and only can be seen with camera. When the laser paddles are placed on the skin, the cold red laser beams penetrate the skin and just deep enough to reach the layers of fat. When the light hits the fat cells, a rapid chain of events takes place. Firstly, change cell permeability and released. The water, Glycerol and fatty acids move into the interstitial space beneath the fatty layer in the skin. Then further water, fatty acids and Glycerol spill out. The fat cells are therefore reduced in size and start to reorganize.
5, Cavitation
Use high power cavitation to break up the fat cells , and drian out by itself


Description | Rf Infrared Vacuum Roller machine |
Voltage | 220-240V/50Hz, 100-130V/60Hz |
Input power | 750VA |
Working Mode | Pulse |
Pulse width | 1s-9s |
LCD screen | 10.4 / 8″ Chromatic Screen |
Handpiece screen | 1: 2.4inch + 2: 1.9inch |
Safety checking | Real time on line |

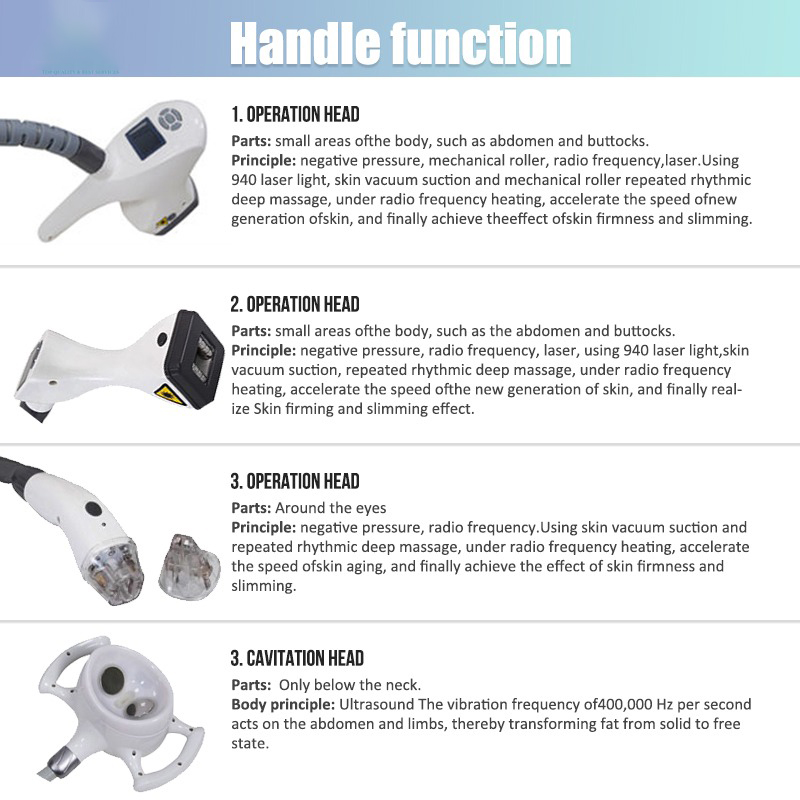

Handpiece: 5pcs | 1. Big vacuum+Massage+Infrared light for body * 1 2. Small vacuum+Massage+Infrared light for arm, leg * 1 3. RF (Infrared light) for face * 1 4. Dual cavitation head for body * 1 |
Treatment area | 4*7mm, 8*25mm, 30*50mm, 40*60mm |
Negative pressure | 1) Absolute value: 80kPa -10kPa (60.8cmHg-7.6cmHg) 2) Relative value: 20kPa -90kPa (15.2cmHg-68.4cmHg) |
Roller working mode | 4 types |
Rev of roller | 0-36 rpm |
Cavitation frequency | 40khz |
Cavitation head diameter | 50mm |
Cavitation energy | 1~50 W/cm2 |
RF frequency | 1-5MHz |
RF energy density | Yes |
Laser wavelength | 940nm |
Laser power | MAX 20W |
